PS4 HDMI Port Repair

PS4 HDMI Port Repair, The HDMI port on the PS4 is common for failing in this console. HDMI ports are our most popular repairs.

PS4 Faulty HDMI port symptoms

Symptoms of a fault ports:

  • If your PS4 turns on and the white light comes on but there is no picture on the TV
  • Bent or broken pins inside the HDMI port
  • The TV might say “no signal” or something similar with the console connected  via the HDMI cable
  • A bent port or one that looks like it’s been pushed in further than it should be
    2016-01-11 17.22.56

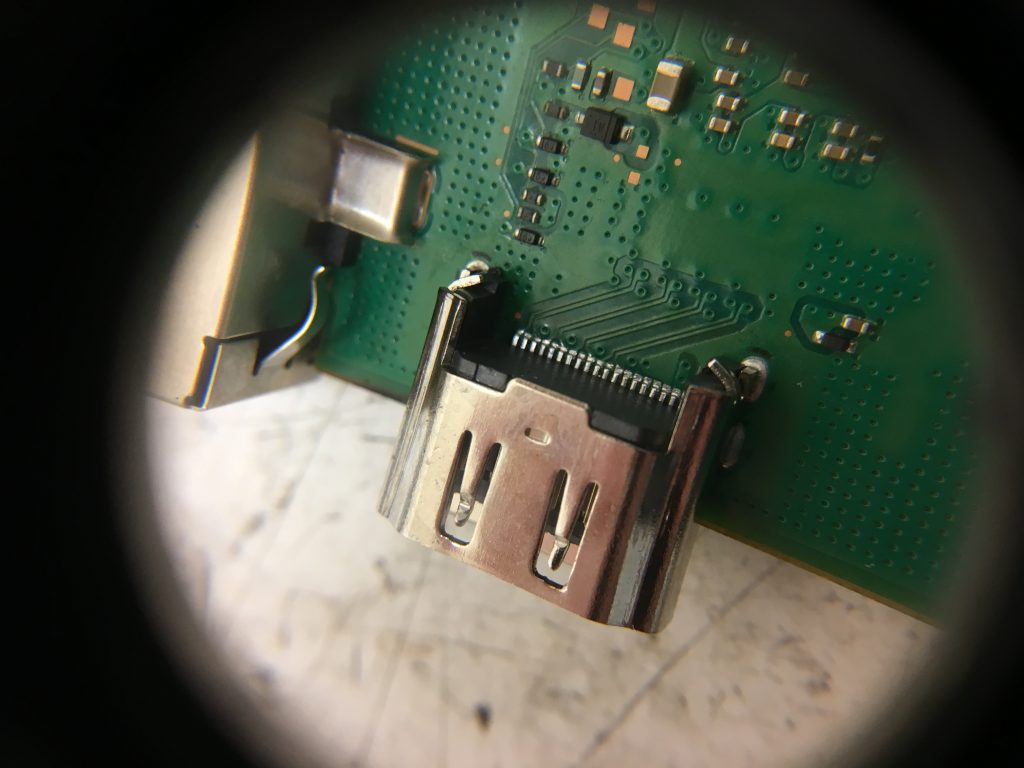

The HDMI ports on the PS4 can be extremely difficult to replace. You need to have a good level of soldering experience and good equipment too. The port is soldered onto the motherboard with 4 mounting tabs, they also have 19 tiny pins that are soldered onto the motherboard.  When we do the repair, The faulty port is carefully removed using a 3 zone rework station, once the solder has melted, the port just falls out. The motherboard is cleaned and the replacement socket fitted. We don’t use the early socket as they are a poor design, we only use the later V2 type.

We offer a HDMI port repair that is reliable. We have the experience to repair your PS4 correctly and quickly the first time.
